Drawings
Organise architectural, structural, electrical, mechanical and low-voltage drawings by site and building. Review PDFs on site with crisp vector zoom.
What you can do with Drawings

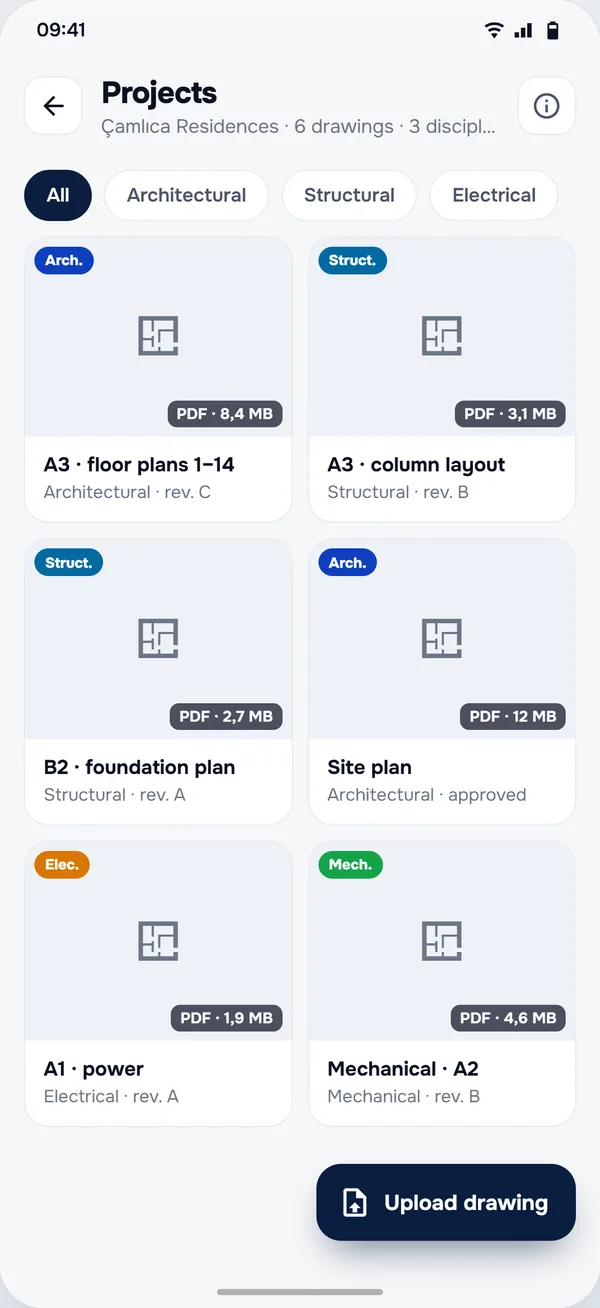

- Drawings organised by site and building
- Disciplines: Architectural · Structural · Electrical · Mechanical · Low-voltage · Landscape
- PDF drawing viewer — unlimited zoom in vector quality
- PNG/JPG drawing support
- Sheet number and revision tracking
- Full-screen landscape mode
- File size checks and warnings
- Search and filter (sheet no., discipline, file name)
- DWG → PDF conversion guide
What it does for you on site
Why it matters
Instead of carrying 50 paper sheets around the site, open every drawing on your phone. Need to check the floor plan? Find it in three seconds, zoom in, see the detail.
Time and money
Printing paper drawings is a recurring cost on every project, and every revision means reprinting. With the drawings on your phone you print far less, and the right sheet is found on site in seconds instead of in a stack of paper.
